Architecture Overview


We want to give garden operators and “regular” users of the Gardener dashboard an easy way to have a preconfigured shell directly in the browser.

This has several advantages:

  • no need to set up any tools locally
  • no need to download / store kubeconfigs locally
  • Each terminal session will have its own “access” service account created. This makes it easier to see “who” did “what” when using the web terminals.
  • The “access” service account is deleted when the terminal session expires
  • Easy “privileged” access to a node (privileged container, hostPID, and hostNetwork enabled, mounted host root fs) in case of troubleshooting node. If allowed by PSP.

How it’s done - TL;DR

On the host cluster, we schedule a pod to which the dashboard frontend client attaches to (similar to kubectl attach). Usually the ops-toolbelt image is used, containing all relevant tools like kubectl. The Pod has a kubeconfig secret mounted with the necessary privileges for the target cluster - usually cluster-admin.

Target types

There are currently three targets, where a user can open a terminal session to:

  • The (virtual) garden cluster - Currently operator only
  • The shoot cluster
  • The control plane of the shoot cluster - operator only


There are different factors on where the host cluster (and namespace) is chosen by the dashboard:

  • Depending on, the selected target and the role of the user (operator or “regular” user) the host is chosen.
  • For performance / low latency reasons, we want to place the “terminal” pods as near as possible to the target kube-apiserver.

For example, the user wants to have a terminal for a shoot cluster. The kube-apiserver of the shoot is running in the seed-shoot-ns on the seed.

  • If the user is an operator, we place the “terminal” pod directly in the seed-shoot-ns on the seed.
  • However, if the user is a “regular” user, we don’t want to have “untrusted” workload scheduled on the seeds, that’s why the “terminal” pod is scheduled on the shoot itself, in a temporary namespace that is deleted afterwards.

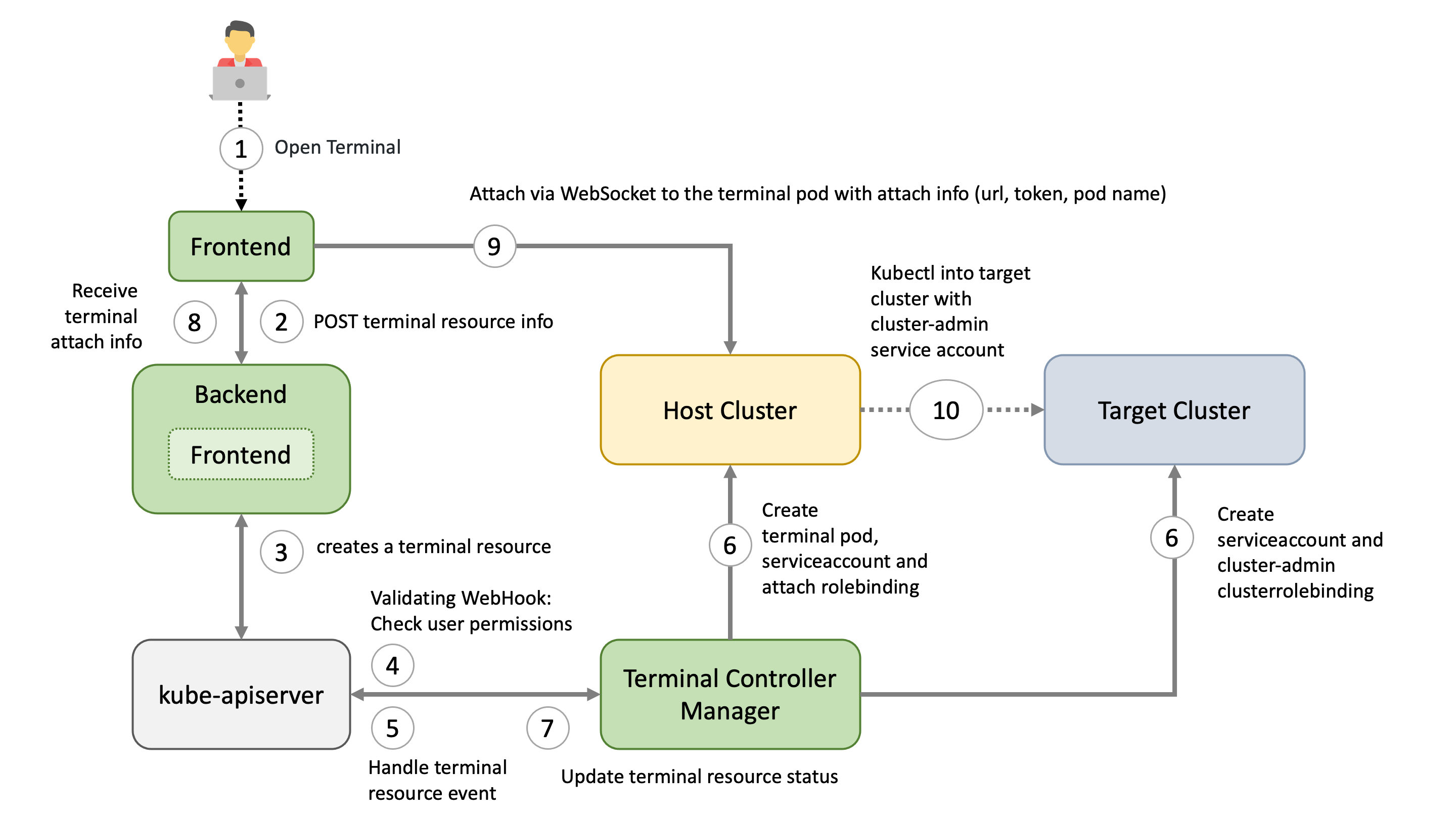

Lifecycle of a Web Terminal Session

1. Browser / Dashboard Frontend - Open Terminal

User chooses the target and clicks in the browser on Open terminal button. A POST request is made to the dashboard backend to request a new terminal session.

2. Dashboard Backend - Create Terminal Resource

According to the privileges of the user (operator / enduser) and the selected target, the dashboard backend creates a terminal resource on behalf of the user in the (virtual) garden and responds with a handle to the terminal session.

3. Browser / Dashboard Frontend

The frontend makes another POST request to the dashboard backend to fetch the terminal session. The Backend waits until the terminal resource is in a “ready” state (timeout 10s) before sending a response to the frontend. More to that later.

4. Terminal Resource

The terminal resource, among other things, holds the information of the desired host and target cluster. The credentials to these clusters are declared as references (secretRef / serviceAccountRef). The terminal resource itself doesn’t contain sensitive information.

5. Admission

A validating webhook is in place to ensure that the user, that created the terminal resource, has the permission to read the referenced credentials. There is also a mutating webhook in place. Both admission configurations have failurePolicy: Fail.

6. Terminal-Controller-Manager - Apply Resources on Host & Target Cluster

Sidenote: The terminal-controller-manager has no knowledge about the gardener, its shoots, and seeds. In that sense it can be considered as independent from the gardener.

The terminal-controller-manager watches terminal resources and ensures the desired state on the host and target cluster. The terminal-controller-manager needs the permission to read all secrets / service accounts in the virtual garden. As additional safety net, the terminal-controller-manager ensures that the terminal resource was not created before the admission configurations were created.

The terminal-controller-manager then creates the necessary resources in the host and target cluster.

  • Target Cluster:
    • “Access” service account + (cluster)rolebinding usually to cluster-admin cluster role
      • used from within the “terminal” pod
  • Host Cluster:
    • “Attach” service Account + rolebinding to “attach” cluster role (privilege to attach and get pod)
      • will be used by the browser to attach to the pod
    • Kubeconfig secret, containing the “access” token from the target cluster
    • The “terminal” pod itself, having the kubeconfig secret mounted

7. Dashboard Backend - Responds to Frontend

As mentioned in step 3, the dashboard backend waits until the terminal resource is “ready”. It then reads the “attach” token from the host cluster on behalf of the user. It responds with:

  • attach token
  • hostname of the host cluster’s api server
  • name of the pod and namespace

8. Browser / Dashboard Frontend - Attach to Pod

Dashboard frontend attaches to the pod located on the host cluster by opening a WebSocket connection using the provided parameter and credentials. As long as the terminal window is open, the dashboard regularly annotates the terminal resource (heartbeat) to keep it alive.

9. Terminal-Controller-Manager - Cleanup

When there is no heartbeat on the terminal resource for a certain amount of time (default is 5m) the created resources in the host and target cluster are cleaned up again and the terminal resource will be deleted.

Browser Trusted Certificates for Kube-Apiservers

When the dashboard frontend opens a secure WebSocket connection to the kube-apiserver, the certificate presented by the kube-apiserver must be browser trusted. Otherwise, the connection can’t be established due to browser policy. Most kube-apiservers have self-signed certificates from a custom Root CA.

The Gardener project now handles the responsibility of exposing the kube-apiservers with browser trusted certificates for Seeds (gardener/gardener#7764) and Shoots (gardener/gardener#7712). For this to work, a Secret must exist in the garden namespace of the Seed cluster. This Secret should have a label gardener.cloud/role=controlplane-cert. The Secret is expected to contain the wildcard certificate for Seeds ingress domain.

Allowlist for Hosts


When a user starts a terminal session, the dashboard frontend establishes a secure WebSocket connection to the corresponding kube-apiserver. This connection is controlled by the connectSrc directive of the content security policy, which governs the hosts that the browser can connect to.

By default, the connectSrc directive only permits connections to the same host. However, to enable the webterminal feature to function properly, connections to additional trusted hosts are required. This is where the allowedHostSourceList configuration becomes relevant. It directly impacts the connectSrc directive by specifying the hostnames that the browser is allowed to connect to during a terminal session. By defining this list, you can extend the range of terminal connections to include the necessary trusted hosts, while still preventing any unauthorized or potentially harmful connections.


The allowedHostSourceList can be configured within the global.terminal section of the gardener-dashboard Helm values.yaml file. The list should consist of permitted hostnames (without the scheme) for terminal connections.

It is important to consider that the usage of wildcards follows the rules defined by the content security policy.

Here is an example of how to configure the allowedHostSourceList:

    - "*.seed.example.com"

In this example, any host under the seed.example.com domain is allowed for terminal connections.
