  5 minute read

Overview

The Gardener API server is a Kubernetes-native extension based on its aggregation layer. It is registered via an APIService object and designed to run inside a Kubernetes cluster whose API it wants to extend.

After registration, it exposes the following resources:

CloudProfiles

CloudProfiles are resources that describe a specific environment of an underlying infrastructure provider, e.g. AWS, Azure, etc. Each shoot has to reference a CloudProfile to declare the environment it should be created in. In a CloudProfile, the gardener operator specifies certain constraints like available machine types, regions, which Kubernetes versions they want to offer, etc. End-users can read CloudProfiles to see these values, but only operators can change the content or create/delete them. When a shoot is created or updated, then an admission plugin checks that only allowed values are used via the referenced CloudProfile.

Additionally, a CloudProfile may contain a providerConfig, which is a special configuration dedicated for the infrastructure provider. Gardener does not evaluate or understand this config, but extension controllers might need it for declaration of provider-specific constraints, or global settings.

Please see this example manifest and consult the documentation of your provider extension controller to get information about its providerConfig.

NamespacedCloudProfiles

In addition to CloudProfiles, NamespacedCloudProfiles exist to enable project level CloudProfiles. Please view GEP-25 for additional information. This feature is currently under development and not ready for productive use. At the moment, only the necessary APIs and validations exist to allow for extensions to adapt to the new NamespacedCloudProfile resource.

When a shoot is created or updated, the cloudprofile reference can be set to point to a directly descendant NamespacedCloudProfile. Updates from one CloudProfile to another CloudProfile or from one NamespacedCloudProfile to another NamespacedCloudProfile or even to another CloudProfile are not allowed.

Project viewers have the permission to see NamespacedCloudProfiles associated with a particular project. Project members can create, edit or delete NamespacedCloudProfiles, except for the special fields .spec.kubernetes and .spec.machineImages. In order to make changes to these special fields, a user needs to be granted the custom RBAC verbs modify-spec-kubernetes and modify-spec-machineimages respectively, which is typically only granted to landscape operators.

InternalSecrets

End-users can read and/or write Secrets in their project namespaces in the garden cluster. This prevents Gardener components from storing such “Gardener-internal” secrets in the respective project namespace. InternalSecrets are resources that contain shoot or project-related secrets that are “Gardener-internal”, i.e., secrets used and managed by the system that end-users don’t have access to. InternalSecrets are defined like plain Kubernetes Secrets, behave exactly like them, and can be used in the same manners. The only difference is, that the InternalSecret resource is a dedicated API resource (exposed by gardener-apiserver). This allows separating access to “normal” secrets and internal secrets by the usual RBAC means.

Gardener uses an InternalSecret per Shoot for syncing the client CA to the project namespace in the garden cluster (named <shoot-name>.ca-client). The shoots/adminkubeconfig subresource signs short-lived client certificates by retrieving the CA from the InternalSecret.

Operators should configure gardener-apiserver to encrypt the internalsecrets.core.gardener.cloud resource in etcd.

Please see this example manifest.

Seeds

Seeds are resources that represent seed clusters. Gardener does not care about how a seed cluster got created - the only requirement is that it is of at least Kubernetes v1.25 and passes the Kubernetes conformance tests. The Gardener operator has to either deploy the gardenlet into the cluster they want to use as seed (recommended, then the gardenlet will create the Seed object itself after bootstrapping) or provide the kubeconfig to the cluster inside a secret (that is referenced by the Seed resource) and create the Seed resource themselves.

Please see this, this, and optionally this example manifests.

Shoot Quotas

To allow end-users not having their dedicated infrastructure account to try out Gardener, the operator can register an account owned by them that they allow to be used for trial clusters. Trial clusters can be put under quota so that they don’t consume too many resources (resulting in costs) and that one user cannot consume all resources on their own. These clusters are automatically terminated after a specified time, but end-users may extend the lifetime manually if needed.

Please see this example manifest.

Projects

The first thing before creating a shoot cluster is to create a Project. A project is used to group multiple shoot clusters together. End-users can invite colleagues to the project to enable collaboration, and they can either make them admin or viewer. After an end-user has created a project, they will get a dedicated namespace in the garden cluster for all their shoots.

Please see this example manifest.

SecretBindings

Now that the end-user has a namespace the next step is registering their infrastructure provider account.

Please see this example manifest and consult the documentation of the extension controller for the respective infrastructure provider to get information about which keys are required in this secret.

After the secret has been created, the end-user has to create a special SecretBinding resource that binds this secret. Later, when creating shoot clusters, they will reference such binding.

Please see this example manifest.

Shoots

Shoot cluster contain various settings that influence how end-user Kubernetes clusters will look like in the end. As Gardener heavily relies on extension controllers for operating system configuration, networking, and infrastructure specifics, the end-user has the possibility (and responsibility) to provide these provider-specific configurations as well. Such configurations are not evaluated by Gardener (because it doesn’t know/understand them), but they are only transported to the respective extension controller.

⚠️ This means that any configuration issues/mistake on the end-user side that relates to a provider-specific flag or setting cannot be caught during the update request itself but only later during the reconciliation (unless a validator webhook has been registered in the garden cluster by an operator).

Please see this example manifest and consult the documentation of the provider extension controller to get information about its spec.provider.controlPlaneConfig, .spec.provider.infrastructureConfig, and .spec.provider.workers[].providerConfig.

(Cluster)OpenIDConnectPresets

Please see this separate documentation file.

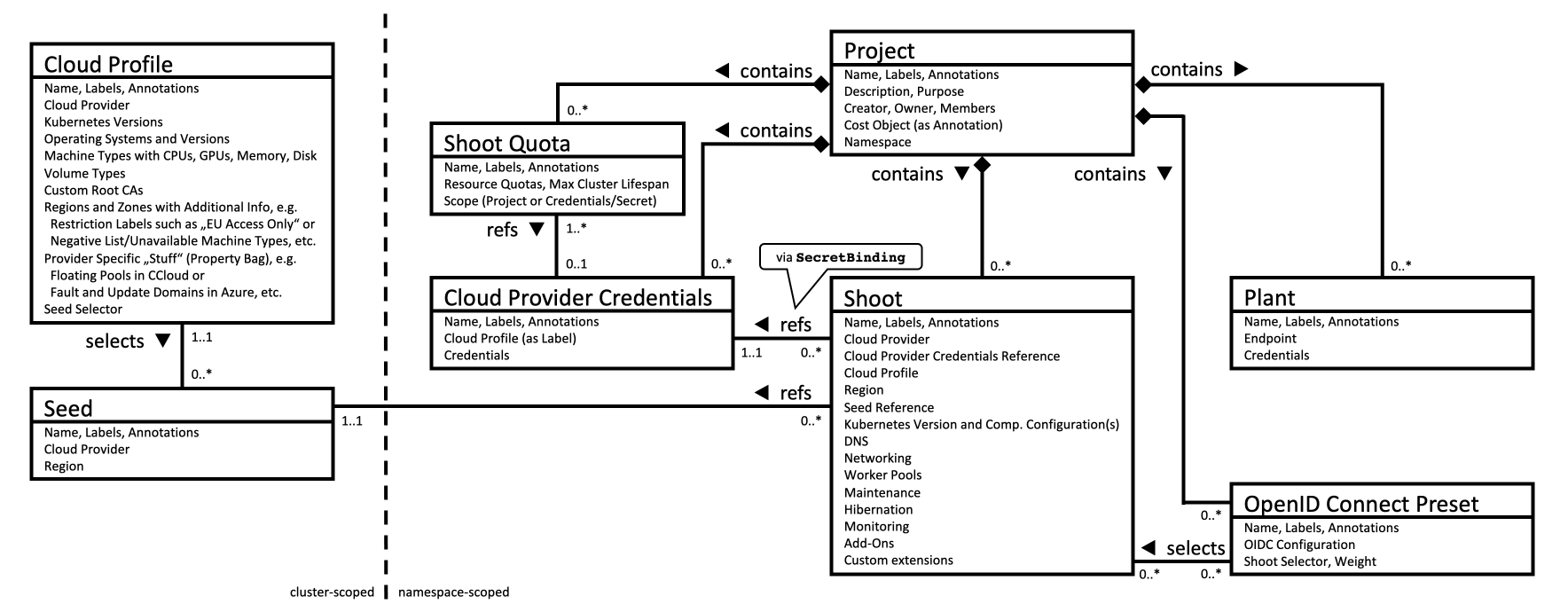

Overview Data Model

Gardener Overview Data Model
