Project Operations ​

This section demonstrates how to use the standard Kubernetes tool for cluster operation kubectl for common cluster operations with emphasis on Gardener resources. For more information on kubectl, see kubectl on kubernetes.io.

Prerequisites ​

  • You’re logged on to the Gardener Dashboard.
  • You’ve created a cluster and its status is operational.

It's recommended that you get acquainted with the resources in the Gardener API.

Using kubeconfig for remote project operations ​

The kubeconfig for project operations is different from the one for cluster operations. It has a larger scope and allows a different set of operations that are applicable for a project administrator role, such as lifecycle control on clusters and managing project members.

Depending on your goal, you can create a service account suitable for automation and use it for your pipelines, or you can get a user-specific kubeconfig and use it to manage your project resources via kubectl.

Downloading your kubeconfig ​

Kubernetes doesn’t offer an own resource type for human users that access the API server. Instead, you either have to manage unique user strings, or use an OpenID-Connect (OIDC) compatible Identity Provider (IDP) to do the job.

Once the latter is set up, each Gardener user can use the kubelogin plugin for kubectl to authenticate against the API server:

  1. Set up kubelogin if you don't have it yet. More information: kubelogin setup.

  2. Open the menu at the top right of the screen, then choose MY ACCOUNT.

    Show account details

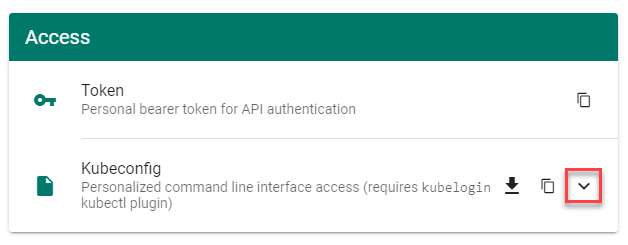

  3. On the Access card, choose the arrow to see all options for the personalized command-line interface access.

    Show details of OICD login

    The personal bearer token that is also offered here only provides access for a limited amount of time for one time operations, for example, in curl commands. The kubeconfig provided for the personalized access is used by kubelogin to grant access to the Gardener API for the user permanently by using a refresh token.

  4. Check that the right Project is chosen and keep the settings otherwise. Download the kubeconfig file and add its path to the KUBECONFIG environment variable.

You can now execute kubectl commands on the garden cluster using the identity of your user.

Note: You can also manage your Gardener project resources automatically using a Gardener service account. For more information, see Automating Project Resource Management.

List Gardener API resources ​

  1. Using a kubeconfig for project operations, you can list the Gardner API resources using the following command:

    bash
    kubectl api-resources | grep garden

    The response looks like this:

    bash
    backupbuckets                     bbc             core.gardener.cloud            false        BackupBucket
backupentries                     bec             core.gardener.cloud            true         BackupEntry
cloudprofiles                     cprofile,cpfl   core.gardener.cloud            false        CloudProfile
controllerinstallations           ctrlinst        core.gardener.cloud            false        ControllerInstallation
controllerregistrations           ctrlreg         core.gardener.cloud            false        ControllerRegistration
plants                            pl              core.gardener.cloud            true         Plant
projects                                          core.gardener.cloud            false        Project
quotas                            squota          core.gardener.cloud            true         Quota
secretbindings                    sb              core.gardener.cloud            true         SecretBinding
seeds                                             core.gardener.cloud            false        Seed
shoots                                            core.gardener.cloud            true         Shoot
shootstates                                       core.gardener.cloud            true         ShootState
terminals                                         dashboard.gardener.cloud       true         Terminal
clusteropenidconnectpresets       coidcps         settings.gardener.cloud        false        ClusterOpenIDConnectPreset
openidconnectpresets              oidcps          settings.gardener.cloud        true         OpenIDConnectPreset

  2. Enter the following command to view the Gardener API versions:

    bash
    kubectl api-versions | grep garden

    The response looks like this:

    bash
    core.gardener.cloud/v1alpha1
core.gardener.cloud/v1beta1
dashboard.gardener.cloud/v1alpha1
settings.gardener.cloud/v1alpha1

Check your permissions ​

  1. The operations on project resources are limited by the role of the identity that tries to perform them. To get an overview over your permissions, use the following command:

    bash
    kubectl auth can-i --list | grep garden

    The response looks like this:

    bash
    plants.core.gardener.cloud                      []                       []                 [create delete deletecollection get list patch update watch]
quotas.core.gardener.cloud                      []                       []                 [create delete deletecollection get list patch update watch]
secretbindings.core.gardener.cloud              []                       []                 [create delete deletecollection get list patch update watch]
shoots.core.gardener.cloud                      []                       []                 [create delete deletecollection get list patch update watch]
terminals.dashboard.gardener.cloud              []                       []                 [create delete deletecollection get list patch update watch]
openidconnectpresets.settings.gardener.cloud    []                       []                 [create delete deletecollection get list patch update watch]
cloudprofiles.core.gardener.cloud               []                       []                 [get list watch]
projects.core.gardener.cloud                    []                       [flowering]             [get patch update delete]
namespaces                                      []                       [garden-flowering]      [get]

  2. Try to execute an operation that you aren’t allowed, for example:

    bash
    kubectl get projects

    You receive an error message like this:

    bash
    Error from server (Forbidden): projects.core.gardener.cloud is forbidden: User "system:serviceaccount:garden-flowering:robot" cannot list resource "projects" in API group "core.gardener.cloud" at the cluster scope

Working with projects ​

  1. You can get the details for a project, where you (or the service account) is a member.

    bash
    kubectl get project flowering

    The response looks like this:

    bash
    NAME        NAMESPACE          STATUS   OWNER                    CREATOR                         AGE
flowering   garden-flowering   Ready    [PROJECT-ADMIN]@domain   [PROJECT-ADMIN]@domain system   45m

    For more information, see Project in the API reference.

  2. To query the names of the members of a project, use the following command:

    bash
    kubectl get project docu -o jsonpath='{.spec.members[*].name }'

    The response looks like this:

    bash
    [PROJECT-ADMIN]@domain system:serviceaccount:garden-flowering:robot

    For more information, see members in the API reference.

Working with clusters ​

The Gardener domain object for a managed cluster is called Shoot.

List project clusters ​

To query the clusters in a project:

bash
kubectl get shoots

The output looks like this:

bash
NAME       CLOUDPROFILE   VERSION   SEED      DOMAIN                                 HIBERNATION   OPERATION   PROGRESS   APISERVER   CONTROL   NODES   SYSTEM   AGE
geranium   aws            1.18.3    aws-eu1   geranium.flowering.shoot.<truncated>   Awake         Succeeded   100        True        True      True    True     74m

Create a new cluster ​

To create a new cluster using the command line, you need a YAML definition of the Shoot resource.

  1. To get started, copy the following YAML definition to a new file, for example, daffodil.yaml (or copy file shoot.yaml to daffodil.yaml) and adapt it to your needs.

    yaml
    apiVersion: core.gardener.cloud/v1beta1
kind: Shoot
metadata:
  name: daffodil
  namespace: garden-flowering
spec:
  secretBindingName: trial-secretbinding-gcp
  cloudProfile:
    kind: CloudProfile
    name: gcp
  region: europe-west1
  purpose: evaluation
  provider:
    type: gcp
    infrastructureConfig:
      kind: InfrastructureConfig
      apiVersion: gcp.provider.extensions.gardener.cloud/v1alpha1
      networks:
        workers: 10.250.0.0/16
    controlPlaneConfig:
      apiVersion: gcp.provider.extensions.gardener.cloud/v1alpha1
      zone: europe-west1-c
      kind: ControlPlaneConfig
    workers:
    - name: cpu-worker
      maximum: 2
      minimum: 1
      maxSurge: 1
      maxUnavailable: 0
      machine:
        type: n1-standard-2
        image:
          name: gardenlinux
      volume:
        type: pd-standard
        size: 50Gi
      zones:
        - europe-west1-c
  networking:
    type: calico
    pods: 100.96.0.0/11
    nodes: 10.250.0.0/16
    services: 100.64.0.0/13
  maintenance:
    timeWindow:
      begin: 220000+0100
      end: 230000+0100
    autoUpdate:
      kubernetesVersion: true
      machineImageVersion: true
  hibernation:
    enabled: true
    schedules:
      - start: '00 17 * * 1,2,3,4,5'
        location: Europe/Kiev
  kubernetes:
    allowPrivilegedContainers: true
    kubeControllerManager:
      nodeCIDRMaskSize: 24
    kubeProxy:
      mode: IPTables
    version: 1.18.3
  addons:
    nginxIngress:
      enabled: false
    kubernetesDashboard:
      enabled: false

  2. In your new YAML definition file, replace the value of field metadata.namespace with your namespace following the convention garden-[YOUR-PROJECTNAME].

  3. Create a cluster using this manifest (with flag --wait=false the command returns immediately, otherwise it doesn't return until the process is finished):

    bash
    kubectl apply -f daffodil.yaml --wait=false

    The response looks like this:

    bash
    shoot.core.gardener.cloud/daffodil created

  4. It takes 5–10 minutes until the cluster is created. To watch the progress, get all shoots and use the -w flag.

    bash
    kubectl get shoots -w

For a more extended example, see Gardener example shoot manifest.

Delete cluster ​

To delete a shoot cluster, you must first annotate the shoot resource to confirm the operation with confirmation.gardener.cloud/deletion: "true":

  1. Add the annotation to your manifest (daffodil.yaml in the previous example):

    yaml
    apiVersion: core.gardener.cloud/v1beta1
  kind: Shoot
  metadata:
    name: daffodil
    namespace: garden-flowering
    annotations:
      confirmation.gardener.cloud/deletion: "true"
  spec:
    addons:
...

  2. Apply your changes of daffodil.yaml.

    bash
    kubectl apply -f daffodil.yaml

    The response looks like this:

    bash
    shoot.core.gardener.cloud/daffodil configured

  3. Trigger the deletion.

    bash
    kubectl delete shoot daffodil --wait=false

    The response looks like this:

    bash
    shoot.core.gardener.cloud "daffodil" deleted

  4. It takes 5–10 minutes to delete the cluster. To watch the progress, get all shoots and use the -w flag.

    bash
    kubectl get shoots -w

Get kubeconfig for a Shoot Cluster ​

To get the kubeconfig for a shoot cluster in Gardener from the command line, use one of the following methods:

  1. Using shoots/admin/kubeconfig Subresource:

    • You can obtain a temporary admin kubeconfig by using the shoots/admin/kubeconfig subresource. Detailed instructions can be found in the Gardener documentation here.

  2. Using gardenctl and gardenlogin: gardenctl simplifies targeting Shoot clusters. It automatically downloads a kubeconfig that uses the gardenlogin kubectl auth plugin. This plugin transparently manages Shoot cluster authentication and certificate renewal without embedding any credentials in the kubeconfig file.

    • When installing gardenctl via Homebrew or Chocolatey, gardenlogin will be installed as a dependency. Refer to the installation instructions here.
    • Both tools can share the same configuration. To set up the tools, refer to the documentation here.
    • To get the kubeconfig, use either the target or kubeconfig command:

      • Target Command: This command targets the specified Shoot cluster and automatically downloads the kubeconfig.

        bash
        gardenctl target --garden landscape-dev --project my-project --shoot my-shoot

        To set the KUBECONFIG environment variable to point to the downloaded kubeconfig file, use the following command (for bash):

        bash
        eval $(gardenctl kubectl-env bash)

        Detailed instructions can be found here.

      • Kubeconfig Command: This command directly downloads the kubeconfig for the specified Shoot cluster and outputs it in raw format.

        bash
        gardenctl kubeconfig --garden landscape-dev --project my-project --shoot my-shoot --raw
