Enabling Trust Between Shoot and Garden Clusters

Overview

This guide explains how to enable trust between the garden cluster and a shoot cluster so that workloads running in the shoot can authenticate directly with the Gardener API server using Kubernetes service account tokens (JWTs), removing the need for static credentials. Authorization decisions are then handled by RBAC in the garden cluster. Example use cases:

• A shoot cluster that manages Gardener resources for a specific organization
• CI/CD pipelines running in a shoot that interact with the Gardener API

How It Works

Setup - TL;DR

The minimal shoot configuration requires two annotations:

annotations:
    authentication.gardener.cloud/issuer: managed
    authentication.gardener.cloud/trusted: 'true'

Additionally, RBAC rules in the garden cluster should grant permissions to the shoot's service account identity which will perform requests to the garden cluster.

Authentication

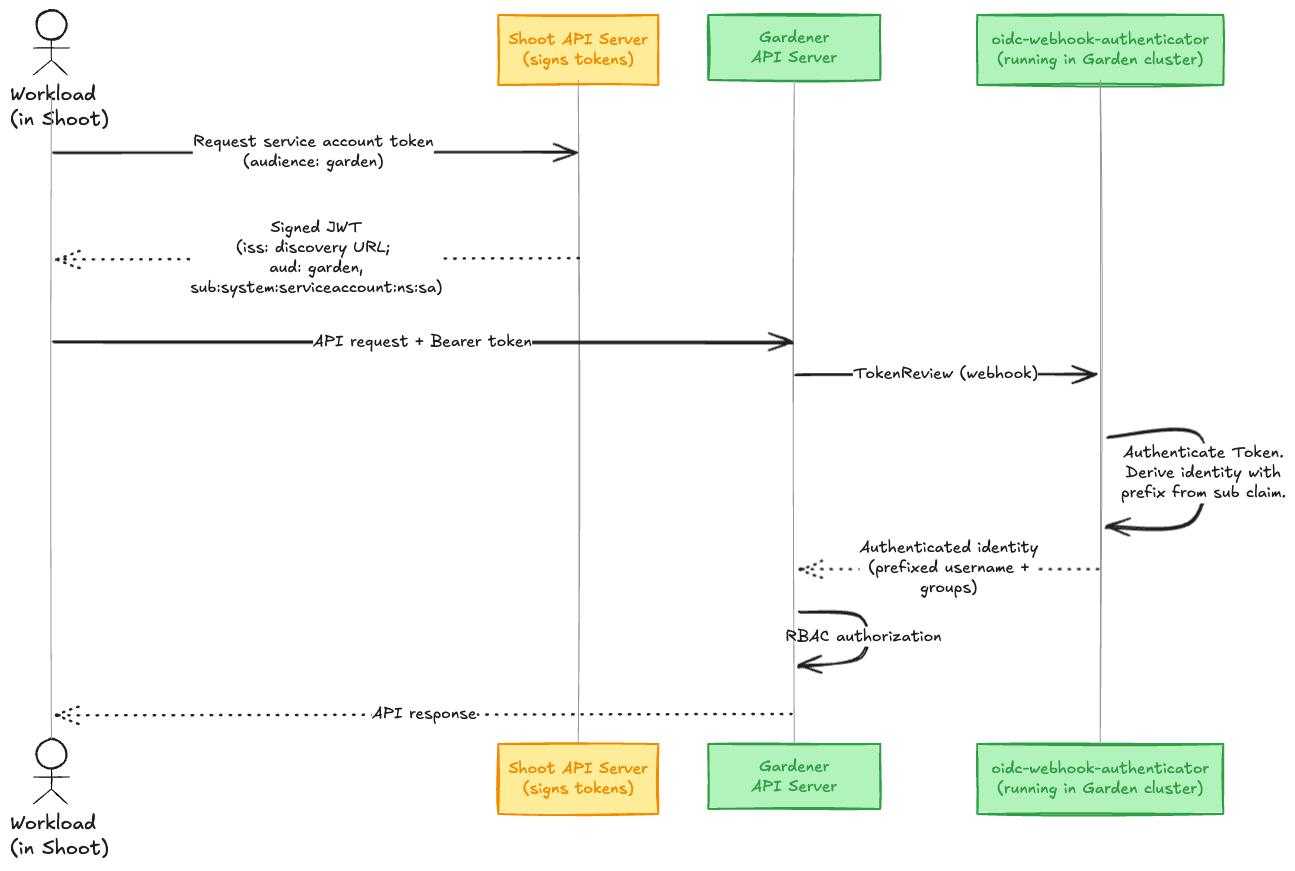

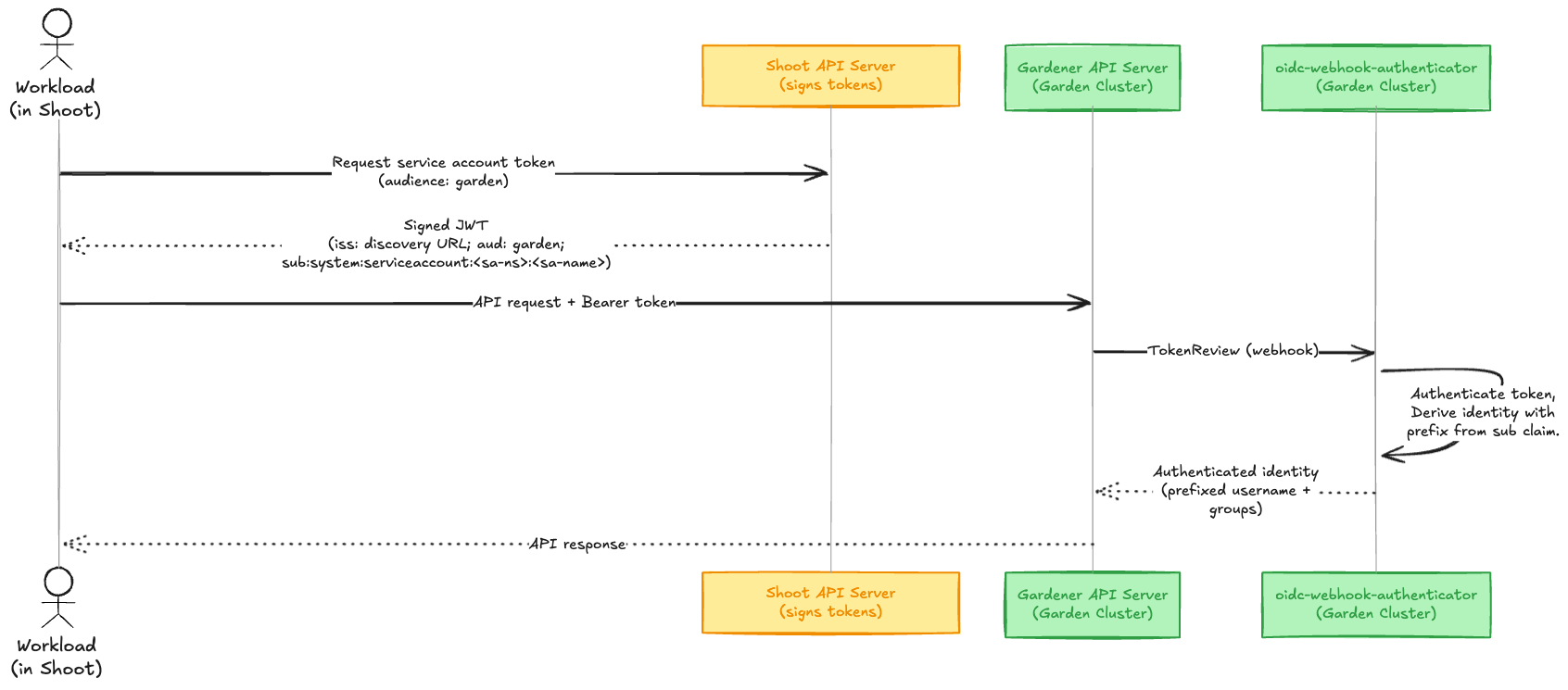

When a request is made, the authentication flow is:

The following components help to enable this feature in the garden cluster:

• Managed Service Account Issuer (GEP-24): Configures the shoot API server to sign service account tokens with a Gardener-managed key pair. The corresponding OIDC discovery documents and JWKS are served publicly by the Gardener Discovery Server.
• oidc-webhook-authenticator (OWA): A webhook token authenticator deployed in the garden cluster that validates OIDC tokens from trusted issuers.
• garden-shoot-trust-configurator: A controller that watches for shoots annotated as trusted and automatically creates the corresponding OIDC resources consumed by OWA.

How to establish trust?

We will follow an example setup where a shoot will contain a health-reporter workload. It monitors the health status of all shoots in a Gardener project by querying the Garden API.

# Target shoot cluster
kubectl create namespace health-reporter
kubectl create serviceaccount health-reporter -n health-reporter

Step 1: Enable Managed Issuer

By enabling a managed service account issuer, Gardener configures the shoot API server to sign service account tokens with a managed key pair. The Gardener Discovery Server then exposes the corresponding OIDC discovery documents and JWKS at a publicly accessible URL, allowing the garden cluster to verify the token signatures.

Add the annotation to your shoot:

annotations:
    authentication.gardener.cloud/issuer: managed

Verification

Verify in the shoot's status that the service-account-issuer is available:

status:
  advertisedAddresses:
    - name: service-account-issuer
      url: >-
        https://discovery.<service-account-issuer-hostname>/projects/<project-name>/shoots/<shoot-uid>/issuer

We can find the publicly available discovery documents via the OIDC endpoint {issuer-url}/.well-known/openid-configuration:

curl https://discovery.<domain>/projects/<project-name>/shoots/<shoot-uid>/issuer/.well-known/openid-configuration | jq .

{
  "issuer": "https://discovery.<domain>/projects/<project-name>/shoots/<shoot-uid>/issuer",
  "jwks_uri": "https://discovery.<domain>/projects/<project-name>/shoots/<shoot-uid>/issuer/jwks",
  "response_types_supported": [
    "id_token"
  ],
  "subject_types_supported": [
    "public"
  ],
  "id_token_signing_alg_values_supported": [
    "RS256"
  ]
}

The service account tokens issued by the shoot's kube-API server will contain an "iss" claim that points to the configured issuer.

You can request a token with the garden audience (this must match the audience configured in the OIDC resource that the garden-shoot-trust-configurator creates).

kubectl create token health-reporter -n health-reporter --audience garden

Decode the JWT to verify its claims:

{
  "aud": [
    "garden"
  ],
  "iss": "https://discovery.<service-account-issuer-hostname>/projects/<project-name>/shoots/<shoot-uid>/issuer",
  "kubernetes.io": {
    "namespace": "health-reporter",
    "serviceaccount": {
      "name": "health-reporter",
      "uid": "<sa-uid>"
    }
  },
  "sub": "system:serviceaccount:health-reporter:health-reporter"
}

Step 2: Annotate Shoot as Trusted

To have the garden cluster trust the shoot's issuer, add the annotation:

annotations:
    authentication.gardener.cloud/trusted: 'true'

The garden-shoot-trust-configurator watches for shoots with this annotation and automatically creates OIDC custom resources. These resources are consumed by the oidc-webhook-authenticator, which validates tokens presented to the Gardener API server.

In essence, this will create the following OIDC resource in the garden cluster:

apiVersion: authentication.gardener.cloud/v1alpha1
kind: OpenIDConnect
metadata:
  labels:
    app.kubernetes.io/managed-by: garden-shoot-trust-configurator
  name: <project-ns>--<shoot-name>--<shoot-uid>
spec:
  audiences:
  - garden
  groupsClaim: groups
  groupsPrefix: 'ns:<project-ns>:shoot:<shoot-name>:<shoot-uid>:'
  issuerURL: "https://discovery.<service-account-issuer-hostname>/projects/<project-name>/shoots/<shoot-uid>/issuer"
  jwks:
    distributedClaims: true
  maxTokenExpirationSeconds: 7200
  supportedSigningAlgs:
  - RS256
  usernameClaim: sub
  usernamePrefix: 'ns:<project-ns>:shoot:<shoot-name>:<shoot-uid>:'

Step 3: Configure RBAC

Authentication (token verification) is now handled automatically, but the authenticated identity has no permissions by default. You must create RBAC rules in the garden cluster to authorize the requested actions.

We need a Role that grants read access to Shoot resources and a RoleBinding that binds it to the shoot's ServiceAccount identity:

# Target garden cluster
kubectl apply -f - <<EOF
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: shoot-health-reader
  namespace: garden-my-project
rules:
- apiGroups: ["core.gardener.cloud"]
  resources: ["shoots"]
  verbs: ["get", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: health-reporter-binding
  namespace: garden-my-project
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: shoot-health-reader
subjects:
- kind: User
  name: "ns:<project-namespace>:shoot:<shoot-name>:<shoot-uid>:system:serviceaccount:health-reporter:health-reporter"
  apiGroup: rbac.authorization.k8s.io
EOF

NOTE

The garden-shoot-trust-configurator configures a prefix to the token's sub and groups claim when deriving the name. This ensures identities from different shoots are always unique, even if they share the same ServiceAccount name. The resulting username has the form:

ns:<project-namespace>:shoot:<shoot-name>:<shoot-uid>:<sub-claim>

Step 4: Verification

Test that we are authenticated and authorized by requesting a token from the shoot and making a request to the Gardener API server:

# Target shoot cluster
TOKEN=$(kubectl create token health-reporter -n health-reporter --audience garden)

curl -k -H "Authorization: Bearer $TOKEN" \
  https://<garden-api-server>/apis/core.gardener.cloud/v1beta1/namespaces/garden-my-project/shoots | jq .

# Expected output
{
  "kind": "ShootList",
  "apiVersion": "core.gardener.cloud/v1beta1",
  "metadata": {
    "resourceVersion": "123"
  },
  "items": [
    ...
  ]
}
