DEP-07: Druid Controlled Quorum-Aware Pod Updates via StatefulSet OnDelete Strategy

Summary

Today, etcd-druid provisions etcd clusters as StatefulSets configured with the RollingUpdate update strategy. On a pod-template change, the StatefulSet controller rolls pods in a fixed highest-to-lowest ordinal order, with no awareness of etcd member health or role. When an existing member is already unhealthy, this ordering can cause an avoidable transient quorum loss during routine spec updates.

This proposal introduces configuring the StatefulSet with the OnDelete update strategy provided by Kubernetes. Under OnDelete, the StatefulSet controller does not roll pods automatically on pod-template changes; instead, a new dedicated controller in etcd-druid deletes and recreates pods in an order that accounts for member health and cluster role. Voluntary updates - image bumps, configuration changes, resource changes - are then propagated under druid's control, with significantly reduced risk of unintended quorum loss in multi-node clusters.

Terminology

• OnDelete: A StatefulSet update strategy where pods are only updated when they are explicitly deleted. The StatefulSet controller does not automatically rollout the pods on template changes.
• RollingUpdate: A StatefulSet update strategy where the StatefulSet controller automatically updates pods one by one, from the highest ordinal to the lowest.
• Quorum: The minimum number of etcd members that must agree on a value for the cluster to make progress. For a 3-member cluster, quorum is 2.
• Leader: The etcd member responsible for handling client write requests and coordinating replication.
• Follower: An etcd member that replicates data from the leader and can serve linearizable reads.
• Participating pod: A pod whose etcd container is currently serving as a leader or follower in the cluster's quorum (i.e., it passes its readiness probe).
• Non-participating pod: A pod whose etcd member is not currently contributing to quorum, regardless of cause (process down, member not yet joined, network-partitioned etc.).

Motivation

Currently etcd-druid deploys etcd clusters as StatefulSets with RollingUpdate strategy. The StatefulSet controller rolls pods from the highest ordinal to the lowest, without considering the health or role of individual etcd members. This creates a risk of unintended quorum loss.

Consider a 3-member cluster with pods P-0, P-1, and P-2. Suppose P-0 is currently unhealthy (it could be partitioned from the network, on a failing node, or hitting an internal etcd error) while P-1 and P-2 are healthy and form a quorum. An operator now triggers a routine spec update, e.g. an image bump. The StatefulSet controller starts at the highest ordinal, deletes P-2, and waits for it to come back ready before proceeding. During that window only P-1 is participating; with 1 of 3 members up, the cluster has lost quorum and stalls writes until P-2 returns. The same outcome repeats when P-1 is rolled next. The unhealthy P-0 (the pod whose deletion would have been safe, since it wasn't contributing anyway) is rolled last, by which time the avoidable downtime has already been incurred.

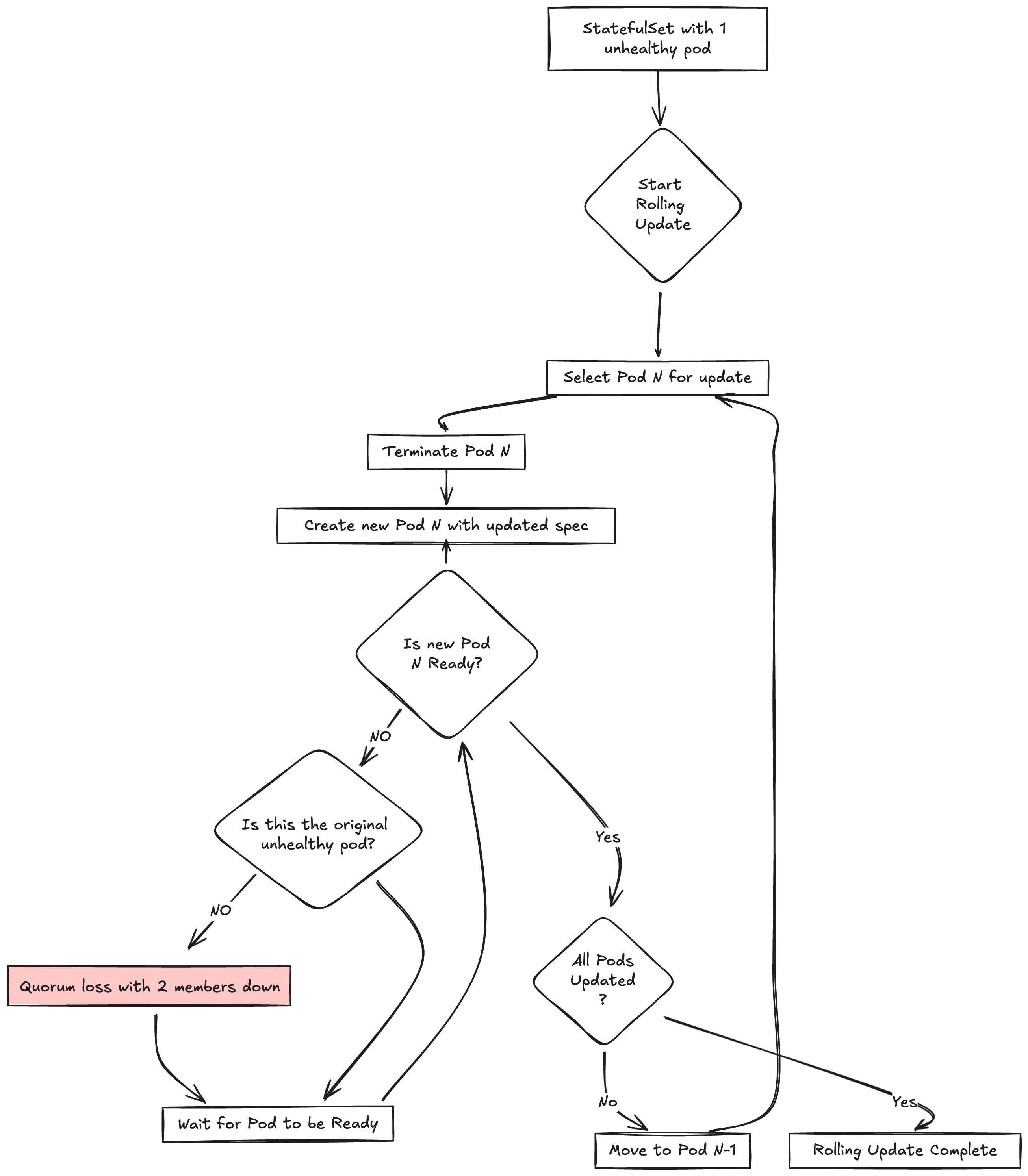

The following diagram illustrates how the RollingUpdate strategy can lead to quorum loss in this scenario:

The StatefulSet controller starts from Pod N (the highest ordinal), terminates it, and waits for the new pod to become ready. If the terminated pod is not the originally unhealthy one, cluster goes into a transient quorum loss with 2 members down.

Moving the pod update process under druid's control, via the OnDelete strategy, addresses three concerns:

1. Reduce transient quorum loss. Select outdated pods for deletion based on member health, so it doesn't prematurely remove a healthy member while an unhealthy one waits its turn in the sequence.
2. Reduce unnecessary leader elections. Update followers before the leader, so the leader-election does not happen as frequently during a rollout.
3. Enable safer in-place volume changes. A safer PVC resize procedure benefits from controlled replacement of pods, which is what OnDelete provides. The resize flow itself is out of scope for this DEP and is covered separately (see Interaction with PVC Resizing).

For a single-node etcd cluster, concerns 1 and 2 do not apply: there is no quorum to preserve and no leader-election to avoid.

Goals

• Prevent unintended quorum loss during voluntary pod updates by replacing the default StatefulSet rolling order with a druid-controlled, health-aware order.

Non-Goals

• This proposal does not claim to prevent all forms of quorum loss. It reduces the likelihood of quorum loss that arises from applying the StatefulSet's default, health-agnostic rolling order to a quorum-sensitive workload.
• This proposal does not cover the PVC resizing or volume replacement flow itself. OnDelete is recommended for a safe resize procedure, but the resize flow is covered in a separate proposal (see Interaction with PVC Resizing).

Proposal

Feature Gate

Quorum-aware pod updates with the OnDelete strategy are opt-in via a new feature gate, QuorumAwareUpdatesWithOnDelete, declared alongside the existing gates in api/config/v1alpha1/features.go. Operators enable it by setting it in the featureGates map of the operator configuration:

# OperatorConfiguration
featureGates:
  QuorumAwareUpdatesWithOnDelete: true

• Maturity: Alpha
• Default: false
• Scope: Operator-wide. The gate applies to every etcd cluster managed by that etcd-druid instance; there is no per-cluster override.
• Effect when enabled: The Etcd reconciler sets spec.updateStrategy.type = OnDelete on every managed StatefulSet, and the OnDelete controller (described below) orchestrates pod updates.
• Effect when disabled: The Etcd reconciler sets spec.updateStrategy.type = RollingUpdate on the StatefulSet, preserving the current behaviour. The OnDelete controller's predicate does not match, so it stays inert.

Why a feature gate.

The choice of StatefulSet update strategy is an internal implementation detail of how etcd-druid realises an etcd cluster on top of Kubernetes primitives. The user's contract is the Etcd resource; they should not need to know that a StatefulSet is involved at all, let alone which of its update strategies is in effect. Exposing the choice as a spec field on Etcd would leak that implementation detail into a stable API surface and foreclose the option to evolve away from StatefulSets later without an awkward API deprecation.

A feature gate is the right mechanism for an operator-controlled toggle that is purely operational: it gives the operator a single switch to enable the new behaviour at a time of their choosing, and, critically, a safe rollback path if a regression is observed in production. Disabling the gate (or downgrading to a version that pre-dates it) restores the pre-OnDelete behaviour without any per-cluster cleanup. Once the feature is exercised long enough to be considered stable, the gate will be graduated through beta to GA and eventually locked to true, at which point no per-operator knob remains to maintain.

The OnDelete Controller

A new controller, separate from the existing Etcd reconciler, is responsible for managing pod updates when the OnDelete strategy is active. This controller watches StatefulSet resources and reconciles whenever the StatefulSet's .status.updateRevision changes, indicating that a pod template update needs to be propagated to pods.

Why a separate controller instead of extending the StatefulSet component:

The OnDelete pod update process could be folded into the existing Etcd reconciliation loop by extending the StatefulSet component. We chose a separate controller for two reasons:

• Preserves the Etcd reconciler's current role. The reconciler today writes the desired state of the cluster's Kubernetes resources (StatefulSet, ConfigMap, Services, Leases, etc.) and relies on each resource's controller to act on it. It does not act on the individual pods. Adding the OnDelete update logic to the reconciler would extend its responsibilities into pod-lifecycle management for the first time; a separate controller keeps that boundary intact and lets the OnDelete logic evolve independently of the rest of the reconciliation pipeline.
• Mirrors how RollingUpdate is managed today. Under RollingUpdate, the Etcd reconciler writes the StatefulSet spec and the Kubernetes StatefulSet controller takes that spec and updates pods accordingly. Under OnDelete, the StatefulSet controller steps back from pod updates and a dedicated controller in etcd-druid takes on that role instead. The split (one component computes the desired StatefulSet spec, another manages the pods that realise it) is the same pattern; only the second half moves into etcd-druid.

Coordination with the Etcd reconciler.

The Etcd reconciler writes the StatefulSet spec; the OnDelete controller only deletes pods. They don't contend on the same field, so there is no update conflict on the StatefulSet object itself.

The OnDelete controller is stateless: every reconciliation re-reads the current StatefulSet's .status.updateRevision and the current pod set. If the Etcd reconciler pushes a new pod template while OnDelete is mid-rollout of a prior revision, the next reconciliation observes the new updateRevision, treats every pod whose controller-revision-hash no longer matches as outdated (including ones already updated against the prior revision), and continues the procedure from there. No explicit handover between controllers is needed.

When the feature gate's effective state changes, either at runtime (operator config update + restart) or as a result of a druid version upgrade/downgrade, the Etcd reconciler updates the StatefulSet's spec.updateStrategy.type first; the OnDelete controller's predicate (spec.updateStrategy.type == OnDelete) then engages or disengages accordingly. The Kubernetes StatefulSet controller and the OnDelete controller therefore never act on pod updates concurrently. See Transitioning Between Strategies for the full handover behaviour.

Controller predicate: The controller only reconciles StatefulSets whose spec.updateStrategy.type is set to OnDelete. This means the controller is always registered in the controller manager but has zero overhead for clusters using RollingUpdate.

Determining Whether a Pod Needs Updating

A pod is considered outdated if its controller-revision-hash label does not match the StatefulSet's .status.updateRevision. The controller-revision-hash is a Kubernetes-managed label on each pod that reflects the revision of the pod template it was created from.

Note: The OnDelete controller relies on the controller-revision-hash label being present on pods and on the StatefulSet's .status.updateRevision to signal the target revision. While appsv1.StatefulSetRevisionLabel is a public constant and the string comparison logic is safe regardless of how the hash is computed, the contract of how and whether the k8s populates this label on pods is not formally guaranteed. If Kubernetes changes how the StatefulSet controller determines whether pods are up-to-date, the OnDelete controller's outdated-pod detection may need to be revisited.

The controller-revision-hash is computed from the pod template spec only. Changes to volumeClaimTemplates do not affect this hash. See Interaction with PVC Resizing.

Health Assessment

The OnDelete controller needs to understand two things about each pod:

1. Is the pod participating in the etcd quorum? This is determined by the etcd container's readiness probe, which the kubelet evaluates against the pod's IP directly (it does not go through any Service). The probe hits etcd-wrapper's /readyz endpoint, which issues a linearizable Get against the local etcd process. Because a linearizable read can only be served with quorum:

   • A passing probe means the member is up and in contact with a healthy quorum: it is participating.
   • A failing probe means either this member is itself down or partitioned, or the cluster as a whole has lost quorum. The probe alone cannot distinguish these two cases: when quorum is lost, every pod's probe fails, including pods whose local etcd process is perfectly healthy.

2. Is the local etcd process alive? This is a separate question from quorum participation, and it is what lets the controller pick a useful pod to delete first when quorum is lost (where readiness alone would mark every pod equally unready). The controller infers process liveness from the etcd container's state under pod.status.containerStatuses[], classifying it as one of:

   • Dead: state.Terminated is set (the container has exited), or state.Waiting is set with a failure reason such as CrashLoopBackOff, RunContainerError, ImagePullBackOff, ErrImagePull, or CreateContainerConfigError.
   • Transient/starting: state.Waiting is set with ContainerCreating or PodInitializing (the container is still being set up).
   • Alive: state.Running is set, regardless of readiness.

   This classification only labels the container's state; how the controller acts on each is decided in the Pod Update Procedure.

Pod Update Procedure

The controller deletes at most one pod per reconciliation cycle. The invariant that protects quorum is this: it never removes a participating member while a previously-updated pod has not yet rejoined the quorum. Participating pods are therefore updated strictly one at a time, each only after the previously-updated pod is participating again.

Non-participating pods do not count toward quorum, so they carry no such constraint: the controller recreates them in successive cycles without waiting for each one to come back.

This cadence applies to clusters of all sizes. Clusters with more than three replicas have the quorum headroom to update multiple participating pods concurrently, but that optimization is intentionally deferred: parallel updates would require handling partial-batch outcomes (one pod of a batch rejoining while another stalls), which significantly complicates the controller's decisions. The first iteration keeps the conservative one-at-a-time cadence for participating pods at every cluster size (see Future Scope).

The procedure in each reconciliation cycle:

Step 1: Check if all pods are up to date. Compare each pod's controller-revision-hash with the StatefulSet's .status.updateRevision. If all match, the update is complete.

Step 2: Check for non-participating pods that need updating. If any outdated pod is non-participating, select one for deletion using the following sub-priority (using the container-state classification from Health Assessment):

Priority	Container state	Rationale
First	Dead	Already broken and contributing nothing. Recreating it at the new revision risks nothing and may fix it.
Second	Transient/starting	Not serving yet. Recreating it at the new revision is cheap and makes update progress.
Third	Alive but readiness failing	The most functional of the three: a live etcd process that rejoins the moment quorum returns, so it is kept running longest to help restore quorum quickly. Recreated last.

Delete the selected pod and requeue. Deleting any of these pods causes the StatefulSet controller to recreate it at the new revision, so it leaves the outdated set and is never re-selected in this step. If a recreated pod cannot come back, the rollout holds at Step 3 (which waits for all updated pods to participate) rather than being retried here.

Step 3: Ensure all updated pods are participating. Before touching any participating pod, verify that every pod already carrying the latest revision is in a participating state. If any updated pod is still non-participating (for example, a pod deleted in a previous cycle has not yet rejoined the quorum), requeue and wait. This prevents the controller from removing a second participating member while a previously-updated one is still recovering.

Step 4: Update one participating pod. At this point, all outdated pods are participating. Select one for deletion using this priority:

Priority	Role	Rationale
First	Follower	Deleting a follower does not trigger a leader election.
Second	Leader	Deleting the leader may trigger a brief leader election, so it is done last.

The controller determines member roles by reading the member lease's holderIdentity field, which contains the member ID and role.

Known limitation. Member lease updates can lag the actual leadership change by a brief interval, during which the controller may read a stale role. Concretely, consider a 3-member cluster {m-0 (follower), m-1 (leader), m-2 (follower)} where m-2 has already been updated. Suppose at time T1 a leadership change occurs and m-0 becomes the new leader, but the member lease only reflects this at a later time T3. If the OnDelete controller looks up roles at some time T2 with T1 < T2 < T3, it still sees m-0 as a follower and selects it for the next deletion. Because m-0 is in fact the current leader, deleting it triggers an additional leader election, exactly the outcome the follower-first priority was meant to avoid. This race is rare and inherent to using the lease as the role source; it is accepted as a known limitation.

Note: When the leader pod is deleted with a normal grace period, the etcd server attempts a graceful leadership transfer to a follower before shutting down. This transfer is best-effort: etcd initiates it during shutdown but does not wait for it to succeed, so a leader election can still occur if the handover does not complete in time. In the common case the handover succeeds and the cluster avoids a full leader-election downtime, which is why an explicit move-leader call from the controller before updating a leader is not needed.

Delete the selected pod and requeue.

Step 5: Repeat until all pods are up to date.

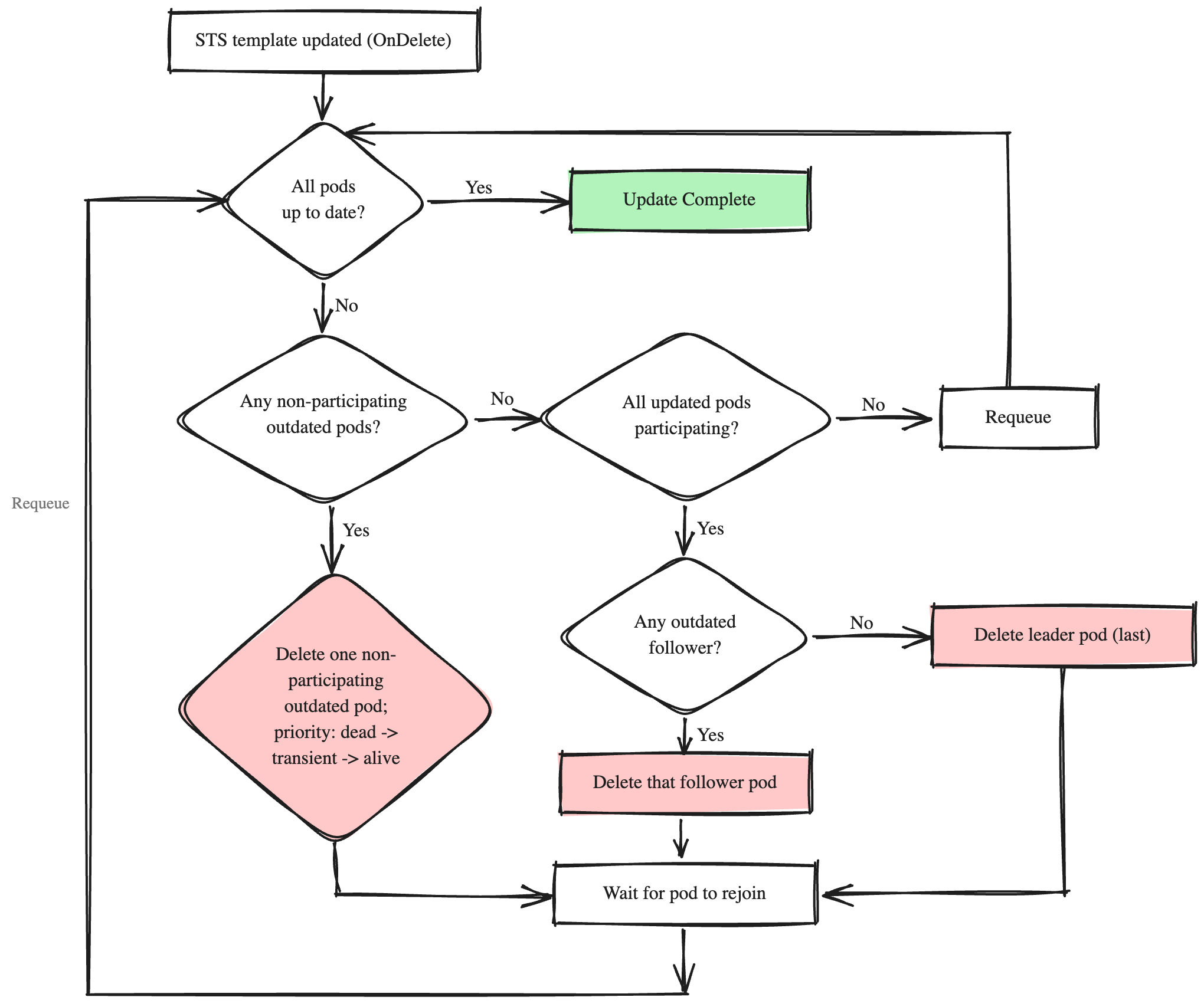

The following diagram summarizes the OnDelete update procedure:

Pod Deletion Method

The controller deletes pods by calling the pod DELETE endpoint (client.Delete), not the pods/eviction subresource. These are two distinct API operations: a pod DELETE does not consult the PodDisruptionBudget, whereas an eviction does. The OnDelete controller relies on its own health-aware logic to decide when a deletion is safe, so it does not need the PDB's budget check on top.

Why Delete instead of Evict:

Several approaches were evaluated:

1. Eviction without unhealthyPodEvictionPolicy: The PDB blocks all evictions when any pod is unready (since minAvailable drops to the threshold). This deadlocks the controller when a pod is already unhealthy, which is precisely the scenario OnDelete is designed to handle.

2. Eviction with unhealthyPodEvictionPolicy: IfHealthyBudget: Allows eviction of unhealthy pods when enough healthy pods exist. Handles the common case of one unhealthy pod, but still deadlocks when two or more pods are unhealthy.

3. Eviction with unhealthyPodEvictionPolicy: AlwaysAllow: Allows eviction of all unhealthy pods regardless of budget. Solves the deadlock but weakens PDB protection against external actors (VPA, node drain, cluster autoscaler) that could concurrently evict unhealthy pods.

4. Direct Delete: Simple and does not interact with the PDB at all.

The recommended approach is direct Delete for the following reasons:

• The current RollingUpdate strategy already deletes pods via the pod DELETE endpoint, not the pods/eviction subresource (Kubernetes StatefulSet controller source). Switching to OnDelete does not change the deletion mechanism, only the ordering.
• Using eviction would require managing PDB policy settings and handling blocked evictions with fallback logic, adding complexity without proportional safety benefit given that the controller is already health-aware.

Limitation of the Delete approach:

Because direct Delete bypasses the PDB, there is a theoretical race condition: an external actor (VPA, node drain) could disrupt a pod between the OnDelete controller's health check and its delete call, resulting in two pods being unavailable simultaneously. In practice this is rare because the window is very short, and the same race exists with the current RollingUpdate strategy which also uses direct deletions. If the race does occur, the controller's next reconciliation will observe the degraded state and pause further updates until the cluster recovers.

The PDB remains configured as today (minAvailable = replicas/2 + 1 for multi-node clusters) and continues to protect against evictions from external actors like VPA, node drain, and cluster autoscaler. The OnDelete controller's direct deletes bypass the PDB by design, because the controller has domain knowledge that the PDB lacks (etcd member health, role, quorum status).

Safeguarding Etcd Pods from Voluntary Disruptions

Two mechanisms protect etcd pods from being disrupted by external actors:

1. PodDisruptionBudget (PDB): For a 3-member etcd cluster, minAvailable is set to 2, allowing at most 1 pod to be evicted at a time. For single-node clusters, minAvailable is 0 (PDB provides no protection). The PDB protects against evictions from VPA, node drain, and similar actors. The OnDelete controller bypasses the PDB via direct delete calls because it makes its own health-aware decisions.

2. Cluster autoscaler safe-to-evict annotation: The cluster-autoscaler.kubernetes.io/safe-to-evict: "false" annotation prevents the cluster autoscaler from evicting etcd pods during node scale-down.

Single-Node Clusters

For single-node etcd clusters, the OnDelete controller follows the same procedure but with a simplification: there is only one pod, so there is no ordering decision to make. The controller deletes the single outdated pod and waits for it to come back.

StatefulSet Status Fields

The Kubernetes StatefulSet controller historically did not promote status.currentRevision to match status.updateRevision when the OnDelete strategy was used (kubernetes/kubernetes#73492, kubernetes/kubernetes#106055). This has now been fixed upstream by kubernetes/kubernetes#136833 and ships in Kubernetes v1.37. For clusters on Kubernetes versions below v1.37, however, the etcd-druid code that compares currentRevision with updateRevision (IsStatefulSetReady and the AllMembersUpdated condition) would incorrectly report the cluster as not ready under the OnDelete strategy.

To support both pre-fix and post-fix Kubernetes versions, the OnDelete controller computes the equivalent information directly from the pods: it compares each pod's controller-revision-hash with the StatefulSet's updateRevision. The existing readiness and condition checks will be updated to use this pod-level comparison when the OnDelete strategy is active. This pod-level approach is robust across Kubernetes versions, so it remains valid after etcd-druid raises its minimum supported Kubernetes version to one that includes the upstream fix.

Transitioning Between Strategies

The Etcd reconciler is the single owner of StatefulSet.spec.updateStrategy.type. On every reconciliation it sets this field based on the current state of the QuorumAwareUpdatesWithOnDelete feature gate: enabled → OnDelete, disabled → RollingUpdate. This invariant means that whenever the gate's effective state changes, the StatefulSet's strategy follows on the next reconciliation, and no manual intervention is required to keep the two in sync.

The gate's effective state can change in two ways:

1. Feature gate toggled at runtime. The operator updates the gate value in OperatorConfiguration.FeatureGates and restarts the etcd-druid pod so the new value is loaded.
2. Druid version upgrade or downgrade. Upgrading to a version that introduces the gate (with the gate enabled) flips the effective state to OnDelete. Downgrading to a version that pre-dates the gate is equivalent to disabling it, because the older Etcd reconciler has no awareness of the gate and will unconditionally set RollingUpdate.

Switch from RollingUpdate to OnDelete.

1. On the next Etcd reconciliation, the StatefulSet component sets spec.updateStrategy.type to OnDelete. The Kubernetes StatefulSet controller stops auto-rolling pods.
2. The OnDelete controller's predicate now matches the StatefulSet and engages. If a RollingUpdate was in flight (some pods at the new revision, some not), the OnDelete controller observes the same controller-revision-hash labels and continues from where the previous controller left off, in health-aware order. Pods already updated by the StatefulSet controller are not re-deleted.
3. If no pods are outdated, the OnDelete controller simply watches for future template changes.
4. If the previous RollingUpdate had stalled waiting for some pod to come back, the OnDelete controller also waits for those; the wait behaviour is unchanged, only the selection order for subsequent pods differs.

Switch from OnDelete to RollingUpdate.

1. On the next Etcd reconciliation, the StatefulSet component sets spec.updateStrategy.type to RollingUpdate. The OnDelete controller's predicate no longer matches; it disengages.
2. The Kubernetes StatefulSet controller resumes pod updates in ordinal order. Because it also consults controller-revision-hash and .status.updateRevision, pods already updated by the OnDelete controller are not re-rolled: only the remaining outdated ones are processed.

Both switches are inherently safe because they touch only the StatefulSet's spec.updateStrategy.type field; no pod is deleted as part of the switch itself. A pod whose deletion is in flight when the switch happens completes its lifecycle normally and is replaced; the new strategy applies to subsequent pods.

Note on version downgrade. Downgrading to a version of etcd-druid that pre-dates this DEP is functionally identical to disabling the gate (the second switch above), since the older reconciler will set RollingUpdate on its next reconciliation. Any OnDelete rollout in progress at the time of the downgrade continues under Kubernetes StatefulSet control afterwards, with no loss of progress.

VPA Interaction

The Vertical Pod Autoscaler (VPA) in Recreate or InPlaceOrRecreate mode does not modify the StatefulSet spec directly. VPA operates through two independent mechanisms:

1. VPA Updater: Evicts pods that don't match the recommended resource values. This eviction respects the PDB.
2. VPA Admission Controller: When the StatefulSet controller recreates a pod, the admission webhook injects VPA-recommended resource values into the new pod's spec at creation time.

Since VPA does not modify the StatefulSet pod template, it does not trigger a new updateRevision and the OnDelete controller is not involved in VPA-driven resource updates. VPA continues to operate independently regardless of the update strategy.

Interaction with PVC Resizing

The PVC resizing story (etcd-druid#481) benefits from the OnDelete strategy: replacing pods one-by-one in a controlled, health-aware order is a safer way to carry out a per-pod resize. OnDelete is recommended for that flow rather than strictly required. The resize flow itself is out of scope for this DEP and will be covered in a separate proposal.

The OnDelete controller's own detection of outdated pods is based on the controller-revision-hash label, which is computed from the pod template spec only and does not include volumeClaimTemplates. A change to storageCapacity or storageClass alone will therefore not trigger the OnDelete controller; the PVC resize flow will handle pod replacement through its own mechanism.

Future Scope

• Backup-restore container health in update ordering: The current design does not consider the health of the backup-restore sidecar container when deciding which pod to update next. The rationale is that backup-restore health does not affect quorum, and prioritizing it could lead to unnecessary leader elections (for example, if a pod with an unhealthy backup-restore happens to be the leader). If future operational experience shows value in considering backup-restore health as a secondary sorting criterion, the priority order can be extended.
• Concurrent pod updates for larger clusters: Clusters with more than three replicas have quorum headroom to update multiple participating pods at once. For example, a 5-member cluster can lose 2 and keep quorum, a 7-member cluster can lose 3, and so on. A future iteration can introduce a quorum-aware concurrency limit (a maxUnavailable-like bound reinterpreted for quorum-based workloads) so that the controller updates as many participating pods in parallel as the cluster's headroom allows, while never breaching quorum.

Alternatives

RollingUpdate with maxUnavailable

Kubernetes supports a maxUnavailable field on the StatefulSet's RollingUpdate strategy (StatefulSet documentation). Setting maxUnavailable: 1 ensures that only one pod is unavailable during the update process, which provides the same quorum safety guarantee as OnDelete for the common case.

However, maxUnavailable has two limitations that OnDelete addresses:

1. Update progress when a pod is already unhealthy. The StatefulSet controller waits for any unavailable pod to recover before proceeding. If a pod is already unhealthy and the update itself might fix it (for example, a configuration change or image bump), the controller is stuck waiting indefinitely. The OnDelete controller does not have this limitation because it can proactively delete the unhealthy pod first, allowing the update to make progress.

2. No control over update order. The StatefulSet controller still follows the ordinal order (highest to lowest) regardless of cluster health state. The OnDelete controller can prioritize non-participating pods and update followers before the leader, minimizing unnecessary leader elections during the rollout.
